Piano Wire Screen

Name: Piano Wire Screen
Brand: Red Star Wire Mesh
SKU: RS-5
Availability: InStock
Rating: 4.8 (3567 reviews)

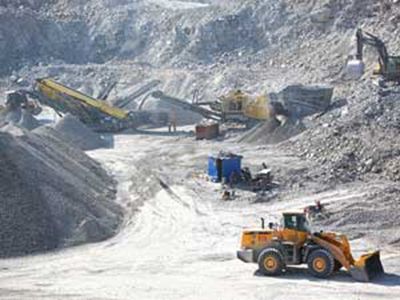

The self-cleaning harp wire screen has the maximum open area in all Anpeng self-cleaning screen mesh series. Like the traditional harp screen mesh or piano wire screen, the self-cleaning harp screen is best for desanding or removing fines while maintaining material in size. It is most efficient in dry screening of sand, gravel, loam, topsoil, mulch, compost, golf sand and more.

立即咨询

分享给朋友：

描述

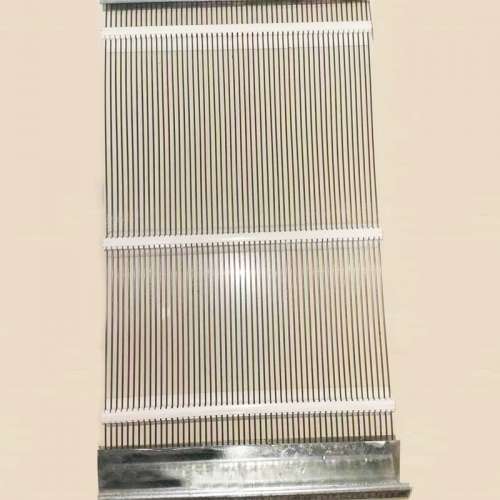

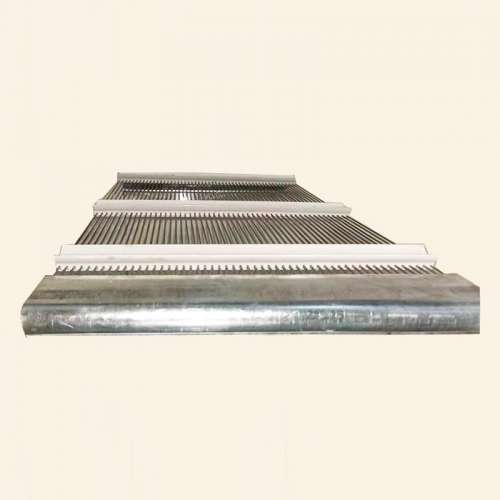

Red Star Piano Wire Screen

Red Star piano wire screen delivers largest screening area for rapid removal of fines. In contrast to conventional harp screen or piano wire screen, this self-cleaning screen features longer service life while enabling the specifications of material remaining unchanged. Piano wire screens are ideal for screening sand, compost and topsoil.

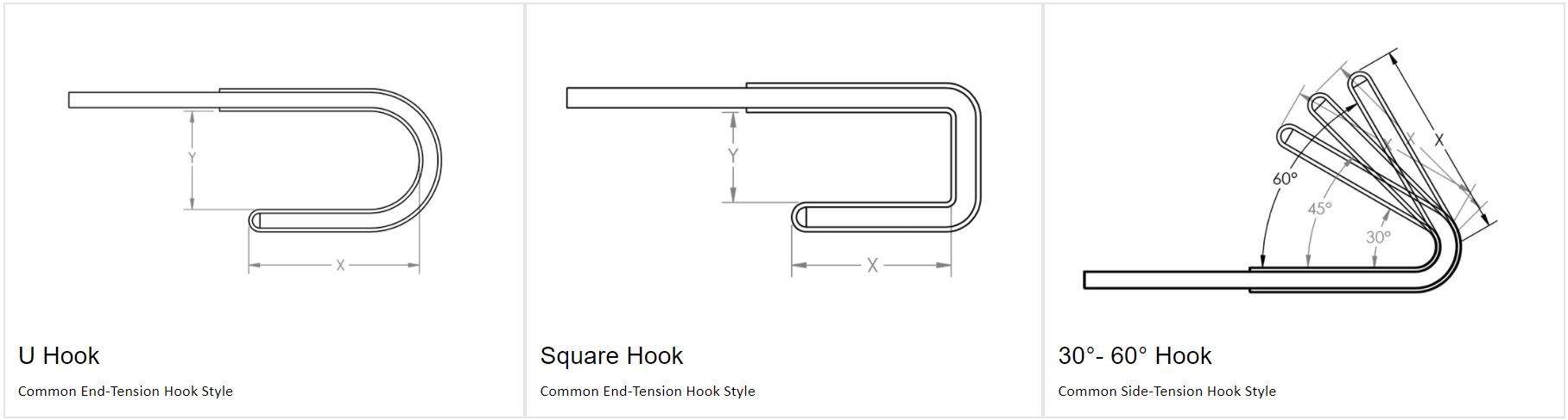

The hooks shown below are examples of common types, however, the hook shape, as well as the backleg and throat dimensions, can be customized for any machine.

Red Star Piano Wire Screen Hooks - Customizable Shape and Dimensions

Opening & Wire Sizes

Opening Size	Standard Wire	Heavy Wire	Heavy Duty Wire
1.2mm (3/64″)	.50mm (.020″)	.65mm (.026″)
1.5mm (1/16″)	.65mm (.026″)	.80mm (.031″)*
2mm (3/32″)	.65mm (.026″)	.80mm (.031″)*
3mm (1/8″)	.80mm (.031″)*	1.0mm (.039″)
4mm (5/32″)	1.0mm (.039″)	1.2mm (.047″)
5mm (3/16″)	1.0mm (.039″)	1.2mm (.047″)
6mm (1/4″)	1.2mm (.047″)	1.4mm (.055″)	2.0mm (.079″)
8mm (5/16″)	1.4mm (.055″)	1.6mm (.063″)	2.0mm (.079″)
10mm (3/8″)	1.4mm (.055″)	1.6mm (.063″)	2.0mm (.079″)
12mm (1/2”)	1.6mm (.063″)	1.8mm (.070″)*	2.0mm (.079″)
16mm (5/8″)	2.0mm (.079″)	2.5mm (.098″)	3.0mm (.118″)
19mm (3/4″)	2.0mm (.079″)	2.5mm (.098″)	3.0mm (.118″)
