我们采用优质材料生产高质量产品！36 多年来，红星公司一直致力于矿山和砂石行业广泛使用的筛分介质的工程设计和制造。
我们采用优质材料生产高质量产品！36 多年来，红星公司一直致力于矿山和砂石行业广泛使用的筛分介质的工程设计和制造。
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_500_500_20241119032647105.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_500_500_20241119032648226.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_500_500_20241119032648721.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_500_500_20241119032649440.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_125_125_20241119032647105.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_125_125_20241119032648226.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_125_125_20241119032648721.jpg)
![{$r[alt] ? $r[alt] : $title}](https://www.hongxingshaiwang.com/uploadfile/2024/1119/thumb_125_125_20241119032649440.jpg)

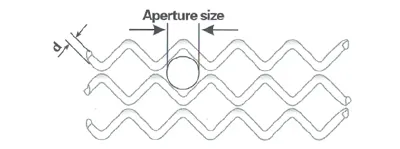

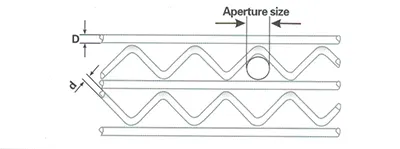

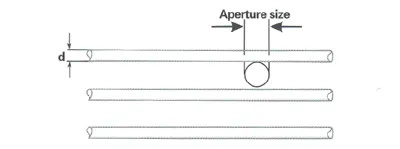

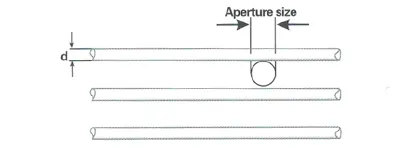

Diamond Aperture Size: 3 mm – 80 mm (Customizable)
Wire Diameter: 1.5 mm – 10 mm (High Carbon Spring Steel)
PU Strip Hardness: Shore 85-90A (Wear-Resistant Grade)
Panel Width: Up to 3,000 mm
PU Strip Fixation: Integrated Vulcanization Bonding

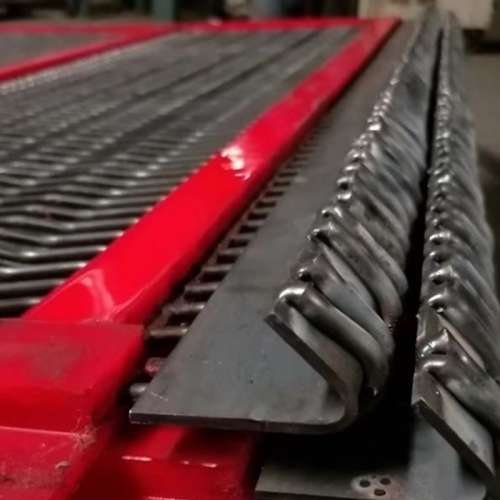

Edge Type: Hooked Edge (All Standard Types Available)
Fixed polyurethane strips eliminate wire displacement & deformation
Diamond aperture design maximizes screening area (up to 45% open area)
PU strips reduce material buildup & extend screen service life by 3x
Superior anti-blinding performance for wet/sticky mineral processing
Low noise operation & minimal maintenance requirements
Specifically engineered for high-efficiency screening of:
Iron ore, copper ore, gold ore processing
Aggregate & gravel classification (3-80mm sizing)
Coal washing & preparation plants
Industrial sand & gravel separation
Construction waste recycling
Quarry operations (primary/secondary screening)

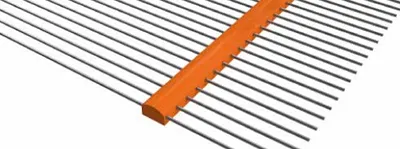

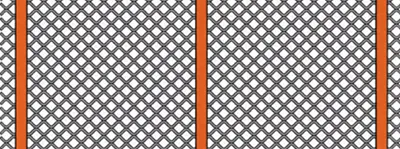

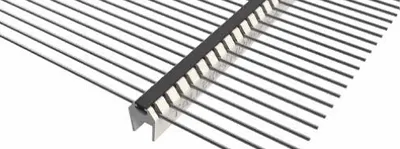

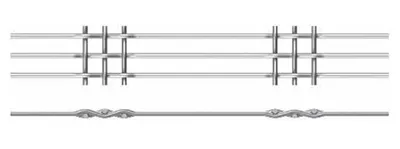

Type 1 - Standard Diamond Aperture with Fixed PU Strips
Type 2 - Reinforced Diamond Aperture with PU Support Strips
Type 3 - Ultra-Wear PU Strip Diamond Screen
Type 4 - Piano Wire Diamond Screen with Fixed PU Strips
Type 5 - Removable PU Strip Diamond Screen

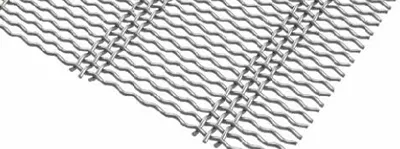

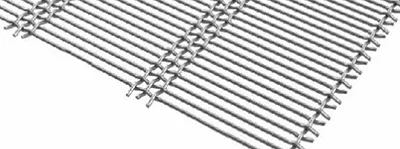

Type A - High Tensile Diamond Aperture Screen
Type B - Anti-Corrosion Diamond Aperture Screen

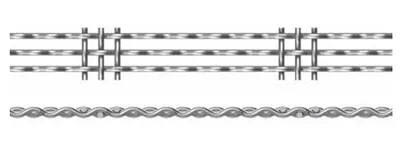

Type 1 - Basic Diamond Aperture
Type 2 - Heavy-Duty Diamond Aperture
Type 3 - Ultra-Fine Diamond Aperture
Type 4 - Wide Diamond Aperture
Type 5 - Narrow Diamond Aperture
Type A - Piano Wire Diamond Screen
Type B - Stainless Steel Diamond Screen
Red Star Wire Mesh specializes in custom-manufactured Self-Cleaning Diamond Aperture Screens with Fixed Polyurethane Strips, tailored to your vibrating screen model, material characteristics, and production capacity. We offer precise customization of diamond aperture size, PU strip hardness, wire gauge, and panel dimensions to ensure optimal screening efficiency and wear resistance.

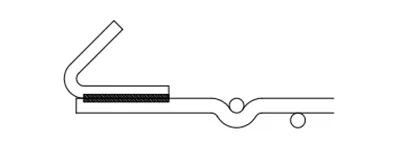

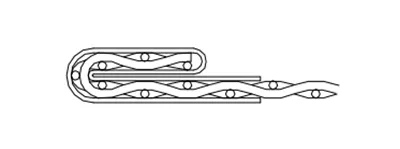

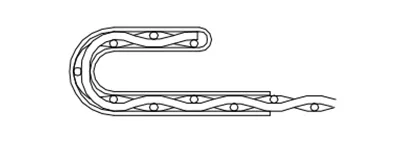

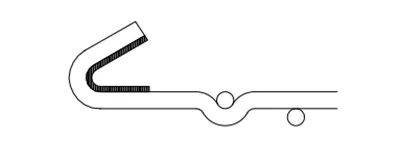

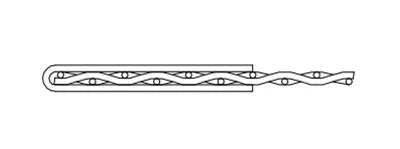

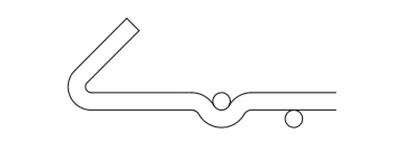

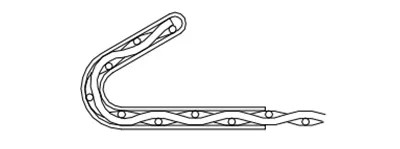

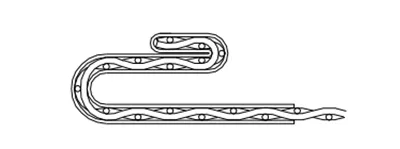

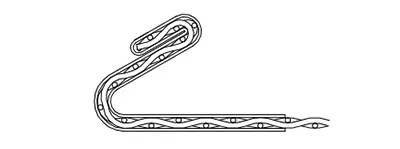

Type 1 - Standard Hook
Type 2 - Heavy-Duty Hook
Type 3 - Quick-Install Hook
Type 4 - Anti-Slip Hook
Type 5 - Extended Hook
Type 6 - Curved Hook
Type 7 - Reinforced Hook
Type 8 - Low-Profile Hook
Type 9 - Custom Hook

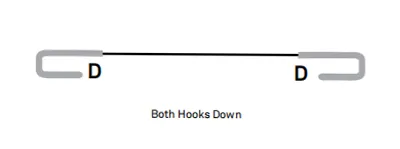

Both Hooks Down

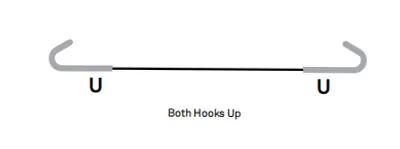

Both Hooks Up

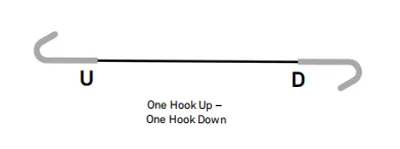

One Hook Up and One Hook Down
Red Star Wire Mesh is the leading manufacturer of Self-Cleaning Diamond Aperture Screens with Fixed Polyurethane Strips, with 36 years of expertise in engineering high-performance screening solutions for the global mining and aggregate industries.
36 years of specialized manufacturing experience (established in 1989)

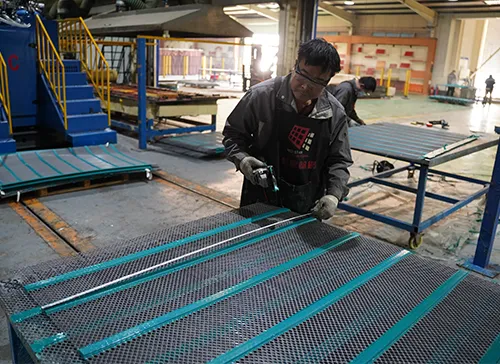

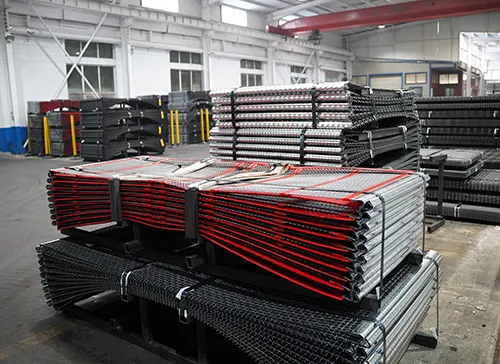

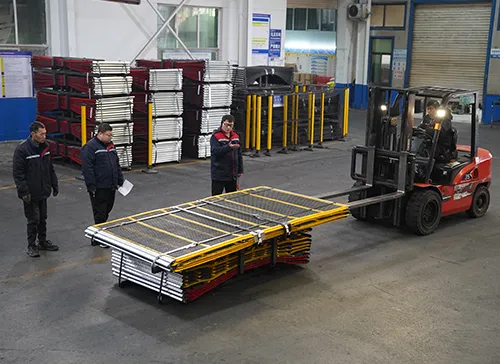

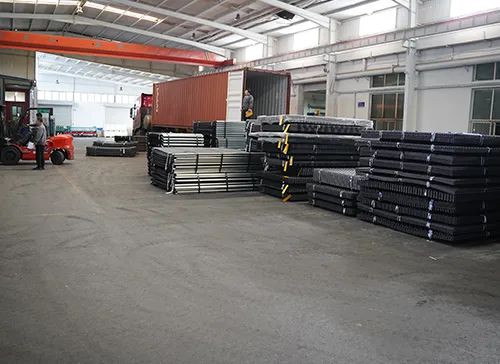

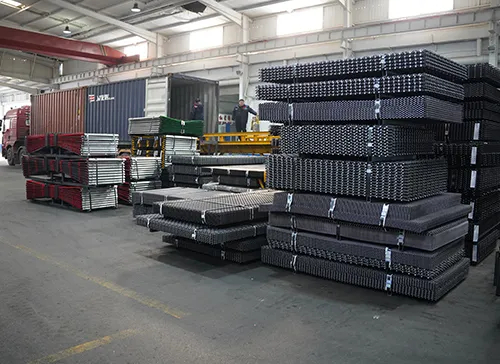

58,730 m² production facility with dedicated diamond screen manufacturing lines

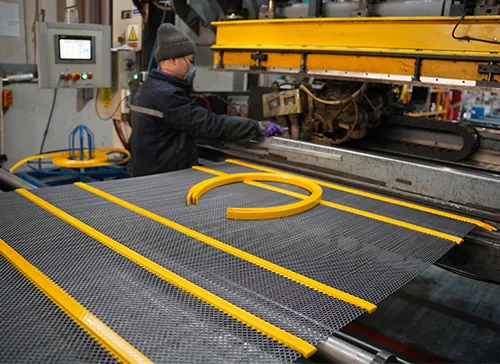

Advanced PU vulcanization technology for permanent wire-PU strip bonding
ISO 9001 certified quality control for diamond aperture precision (±0.1mm tolerance)
4000 m² R&D center focused on wear-resistant PU materials for diamond screens
18 patents for anti-blinding diamond aperture screen technology
OEM/ODM capabilities for all major vibrating screen brands (Metso, Sandvik, Terex)
Fast lead times: in-stock diamond screens ship within 48 hours, custom orders in 7-10 days
Every Diamond Aperture Screen with Fixed Polyurethane Strips undergoes rigorous quality testing: wire tensile strength verification, PU strip hardness testing (Shore 85-90A), aperture size precision inspection, and vulcanization bond strength testing. Our screens are engineered to withstand the harshest mining conditions while maintaining consistent screening performance for up to 12 months of continuous operation.
Looking for a reliable manufacturer of Self-Cleaning Diamond Aperture Screens with Fixed Polyurethane Strips? Contact Red Star Wire Mesh today for competitive pricing, technical specifications, and customized solutions tailored to your screening application. We offer free samples and on-site technical support for all diamond aperture screen products.
