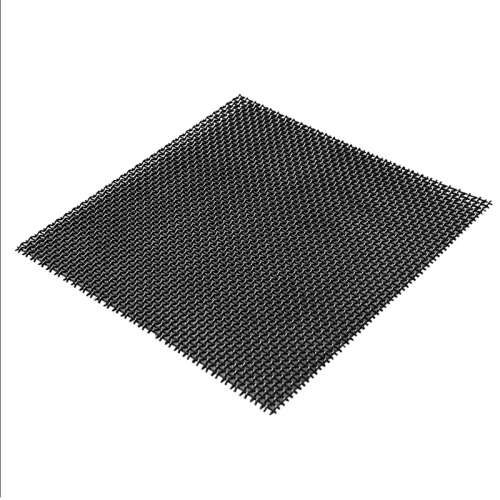

Mining Quarry Vibration Rock Steel Woven Steel Screen Mesh Wire Mesh

Name: Mining Quarry Vibration Rock Steel Woven Steel Screen Mesh Wire Mesh
Brand: Red Star Wire Mesh
SKU: RS-24
Availability: InStock
Rating: 4.8 (3567 reviews)

Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.
It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.
The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.
With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

立即咨询

分享给朋友：

描述

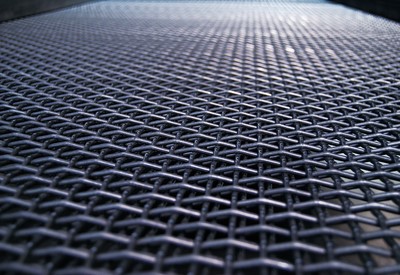

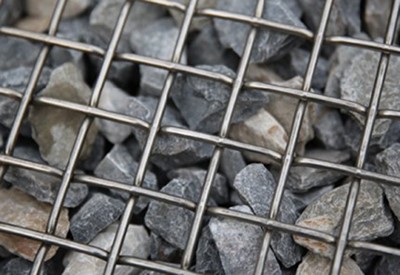

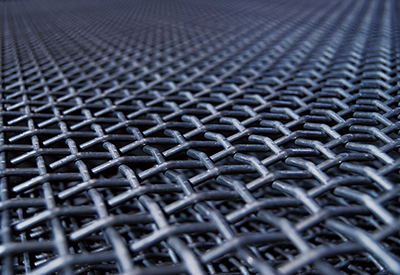

Woven Wire Vibrating Screen

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. The high-quality raw materials make woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on. With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

Specification

Material: High tensile spring steel, manganese steel and stainless steel.
Wire diameter: 0.71mm - 12.5mm.
Opening size: 1mm - 100mm.
Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
Mesh type: Square, rectangular slot, long slot.
Surface treatment: Black or red color painted.

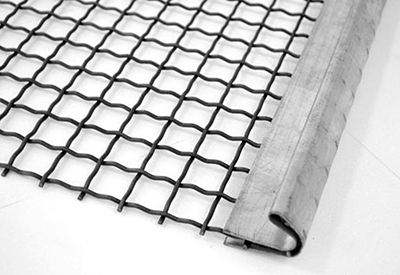

Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.

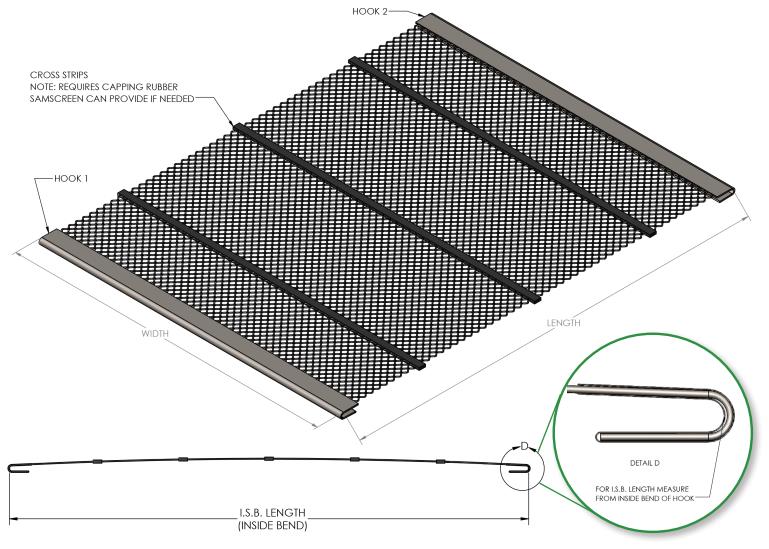

Hook type: C or U hook for 30° - 180°.

Chemical Composition

Steel Grade		Chemical Composition (%)
China (GB-YG)	USA (AISI)	C	Mn	Si	S	P	Cr	Cu	Ni
#45	1045	0.42-0.50	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#50	1050	0.47-0.55	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#55	1055	0.52-0.60	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#60	1060	0.57-0.65	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#70	1070	0.67-0.75	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
65Mn	1566	0.62-0.70	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30

Features

Wear and abrasion resistant
Heavy impact resistant
High temperature resistant
Shock and pull resistant
High tensile strength & toughness
Acid, alkali & corrosion resistant
Long service life

Applications

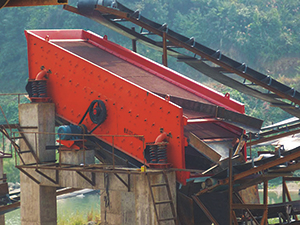

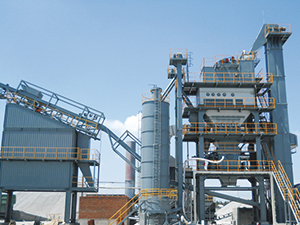

Woven vibrating screen mesh can be used as screen deck in quarry screen and crusher screen to separate and sort stone, sand, gravel, coal, rock and other materials. It is widely used in stone processing, asphalt mixing plants, coal, metallurgy, chemical and other industries.

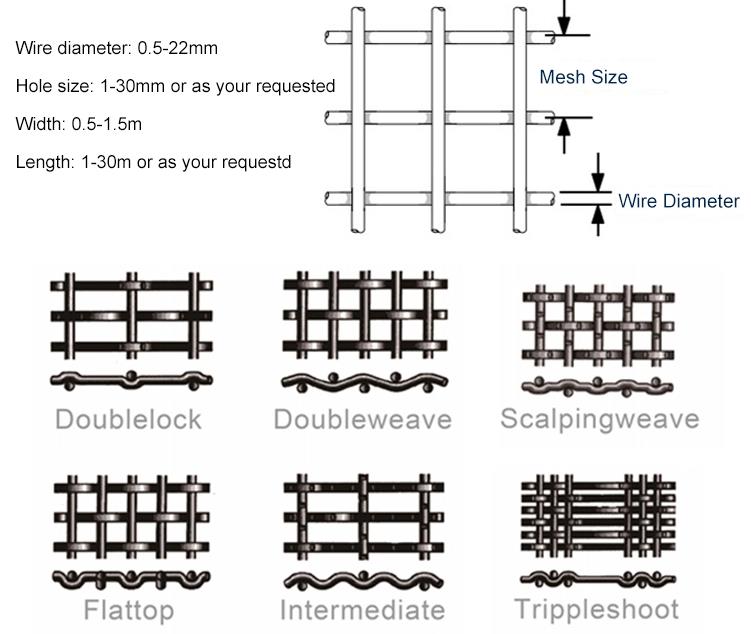

Weave Styles

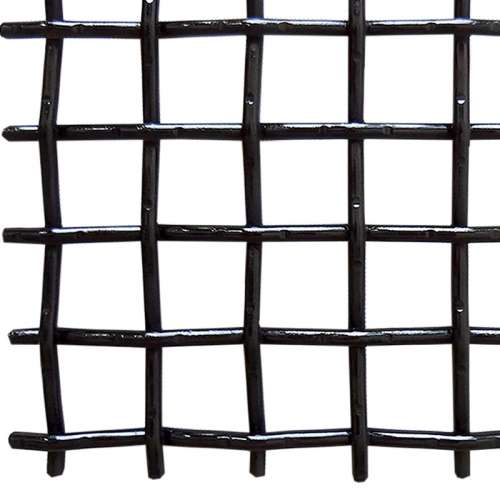

Plain Weave / Double Crimp

Simplicity and high weave precision, ideal for small openings, ensures high screening efficiency and stable performance.

Lock Crimp Woven Wire

Warp and weft wires lock at intersections to prevent movement and abrasion. Perfect for large aperture and wire diameter.

Flat Top Woven Wire

Smooth surface for easier material flow, longer abrasion resistance life with no obstacles to block materials.

Intercrimp Woven Wire

Extra crimps between intersections for larger openings with stable wire diameter. Higher rigidity and great for high throughput.

Application Scenarios

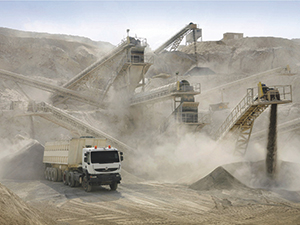

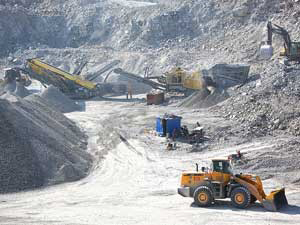

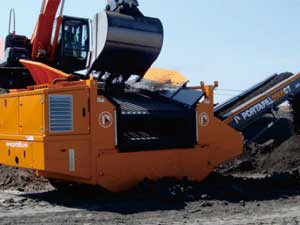

Square wire mesh is widely used in mining, quarry, screening plates, crushing screens, drum screens, vibrating screens, road construction, asphalt mixing, chemical, pharmaceutical, construction and other industries.
