Woven Vibrating Screen Differs in Material and Woven Type

Name: Woven Vibrating Screen Differs in Material and Woven Type
Brand: Red Star Wire Mesh
SKU: RS-23
Availability: InStock
Rating: 4.8 (3567 reviews)

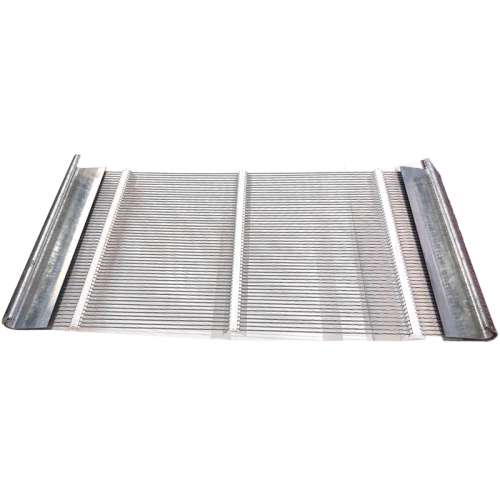

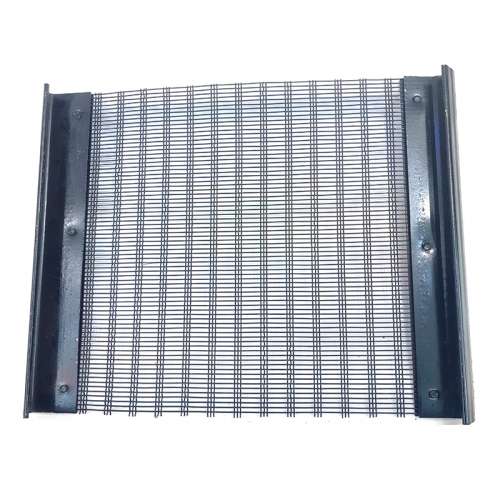

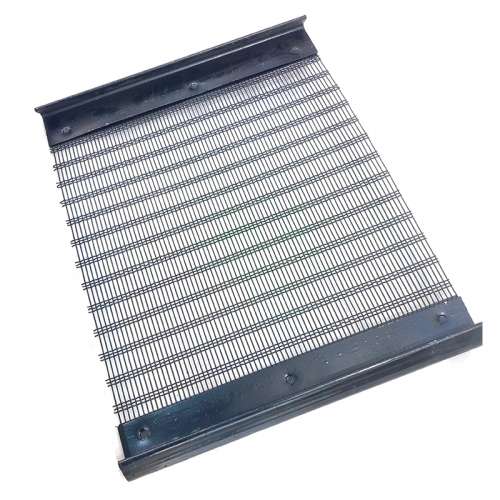

Vibrating Deck Screens are available with any style of edge preparation or hook strip, ready for field installation upon delivery.
Proper screen tension is crucial for effective screening and longer screen life. Our edge preparations fit the deck properly for easy screen installation and tensioning.

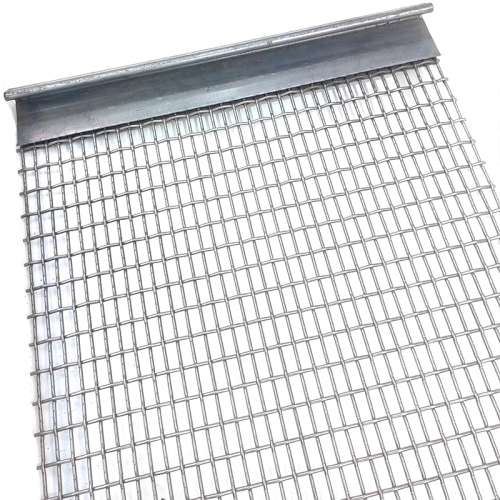

Banded Hook edges increase strength (prevent flattening) and eliminate mesh pull-out on fine wire mesh or high tension screens.

立即咨询

分享给朋友：

描述

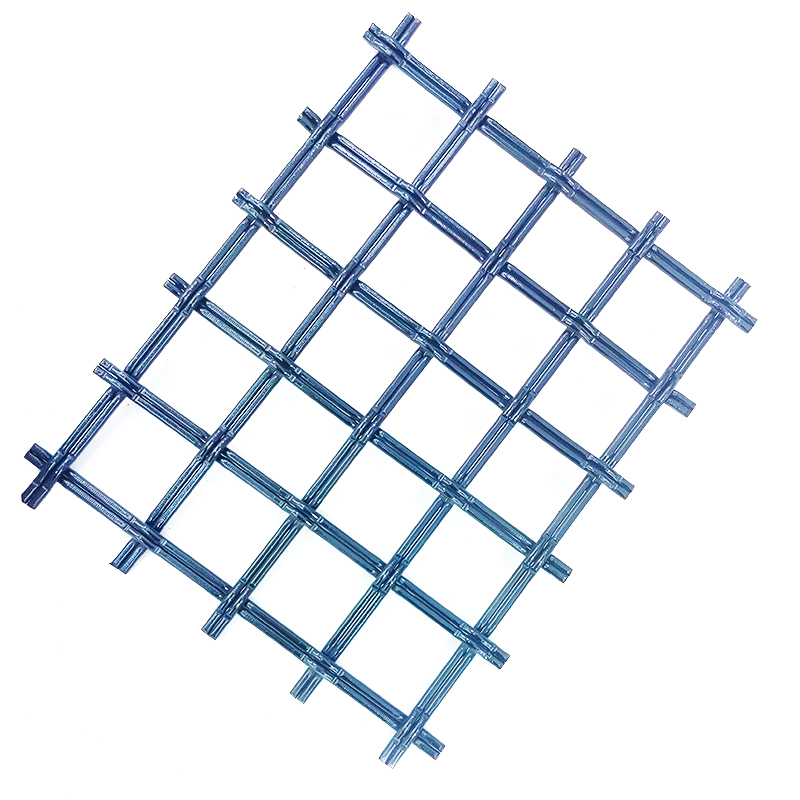

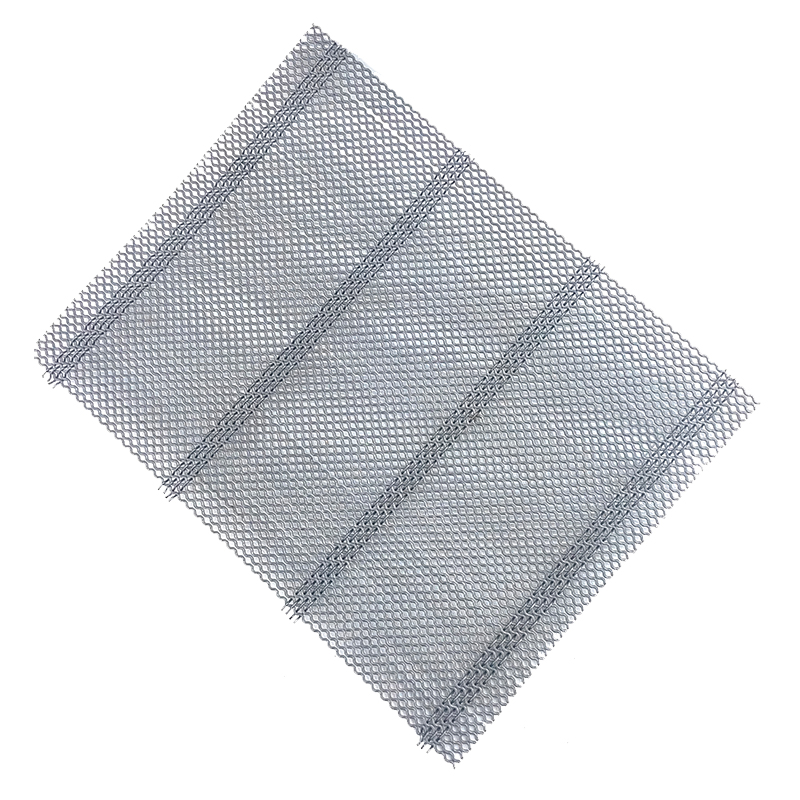

Woven Vibrating Screen Mesh

Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.

It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.

The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.

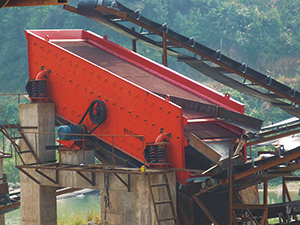

With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

Hardware Wire Mesh Co., Ltd specializes in High Carbon Steel Screen Mesh, designed for optimal performance in vibrating screen machines. This mesh excels in filtering and separating a variety of materials, including sand, gravel, coal, and rocks. Crafted from robust materials such as high tensile spring steel, manganese steel, and stainless steel, the mesh is engineered to withstand damage and maintain its shape under diverse conditions. Its versatility is evident in its ability to operate effectively across a spectrum of temperatures. The product range encompasses a variety of styles, including woven wire, self-cleaning, piano wire, and stainless steel screen mesh, catering to a broad range of industrial needs. JD Hardware Wire Mesh Co., Ltd focuses on delivering quality and durability, ensuring that their High Carbon Steel Screen Mesh stands up to the demands of various screening applications.

Detailed Specifications

Material Quality and Options: The mesh is available in two high-grade materials, High Tensile Spring Steel, known for its exceptional strength and flexibility, 65Manganese Steel, recognized for its high impact resistance and durability.

Wire Diameter Versatility: 1.0mm – 14mm

Aperture Size: 2.0mm – 100.0mm

Standard Widths: 1.22m, 1.53m, 1.83m, 2m (custom available)

Length: 1.22m – 6m (customizable)

Chemical Composition of Main Materials

Steel Grade		Chemical Composition (%)
China (GB-YG)	USA (AISI)	C	Mn	Si	S	P	Cr	Cu	Ni
#45	1045	0.42-0.50	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#50	1050	0.47-0.55	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#55	1055	0.52-0.60	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#60	1060	0.57-0.65	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
#70	1070	0.67-0.75	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30
65Mn	1566	0.62-0.70	0.50-0.80	0.17-0.37	≤0.035	≤0.035	≤0.25	≤0.25	≤0.30

Weave Types

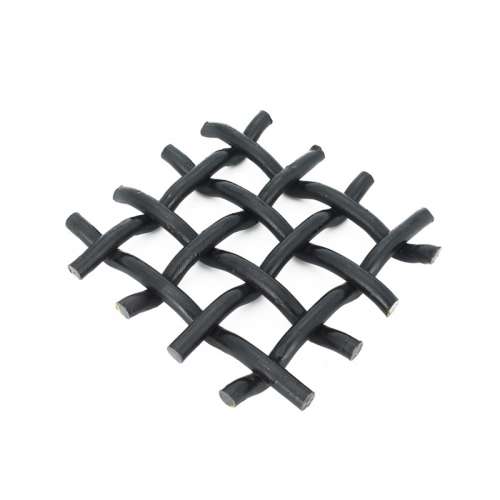

Double-Crimp Weave

The Double-Crimp weave is a versatile option featuring smaller, uniform openings. This style is renowned for its all-around efficiency and long-wearing performance, making it suitable for a broad range of applications. Its tight crimping provides stability and strength.

Lock-Crimp Weave

Lock-Crimp weave is characterized by its larger openings, designed specifically for heavy-duty and scalping applications. The wire is firmly locked in place, maintaining accurate opening sizes over time and offering excellent durability.

Slotted Openings Weave

Slotted Openings weave features single-shute oblong openings, designed to reduce blinding and improve material flow. Ideal for applications where standard square or rectangular openings may clog easily.

Flat Top Weave

Flat Top weave offers a smoother, flatter surface that significantly improves material flow. It reduces wear and helps materials glide smoothly across the screen, ideal for efficient screening.

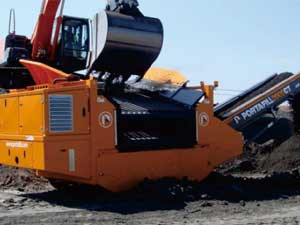

Applications

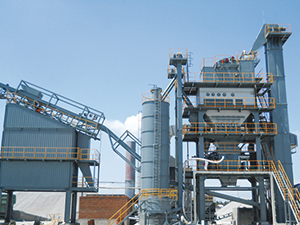

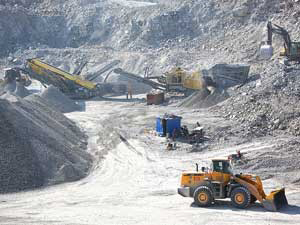

Woven vibrating screen mesh is widely used in quarry, mining, aggregate production, coal, metallurgy, chemical, road construction, asphalt mixing plants and other industries for screening sand, gravel, coal, stone, rock and other bulk materials.
